Meridian Controller AF2-60210-14 MEC 110
Ensure Food Safety and Quality
Product that is undercooked or held too long
in the Danger Zone (40°-140°F/5°-60°C) can
potentially expose your customers and crew
to dangerous food-borne illness.
Bacteria multiplication can be prevented by controlling
the time a product is cooked and/or held. The
Meridian helps operators avoid food safety
dangers by automatically monitoring these
cook and hold times. Precisely timed products
deliver consistently good-tasting food to your customers. Hold timers also ensure that expired product is never served.
Programmable to suit the following product versions
» Split Vat Controller
» 4 Head Electric Meridian Controller
» 4 Head Gas Meridian Controller
» 8 Head Gas Meridian Controller8 Head Meridian Controller
Increase Yields
Independent tests show the (FAST.Flex)™ cooking curve provides the best and most
consistent yields across load sizes and cooking temperatures, regardless of product
temperature and moisture content. A reduction in food waste can also be realized.
Easy to Program
(FAST.Nav)™ mobile phone style and predictive text programming reduces
training time and increases productivity.
User-Friendly Messaging
14-segment 8-character displays allow a greater range of names and prompts to be
used. Create your own product menu and action alarm names, or choose from a preprogrammed library of standard menu items.
Interchangeable with Other Fryers
Easily move your Meridian to another fryer eliminating the need to purchase a new control.
The controller can be configured to work on fryers from a variety of manufacturers.
Secure Operation
Separate pass codes for store managers and employees prevent
unauthorized re-programming.
Energy Savings (optional)
Save energy dollars with Kitchen Brains’™ patented Set Back feature. The controller
will automatically lower the appliance’s temperature during inactive periods.
Filter Lockout Oil
Management (optional)
Reduce costs by extending the usable life of your oil with Kitchen Brains’™ patented
SmartStat™ temperature control technology. Filtering your oil at pre-set time(s) of the day will not only give you longer oil life, but will also improve product flavor and reduce the amount of time and labor it takes to change out the oil.
24/7 Technical Support
As with all Kitchen Brains™ products, the (FASTRON.)® Meridian comes with 24-hour programming assistance via toll-free phone.

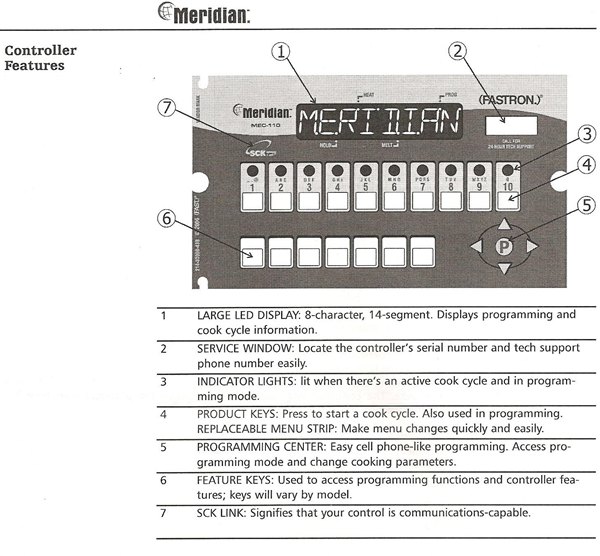

Standard Meridian Features
10 Product Keys to support ever-changing menus. More space for LTOs (limited time offers).
Fully RoHS compliant
Larger LED displays with 8 characters
Appliance mode front-panel selectable: gas, electric, propane, etc.
Replaceable menu strip for quick and easy menu changes.
Replaceable feature key menu strip with globalized symbols
SCK Xwire™ wireless communications compatible for the networked kitchen
(FAST.Edit)® and (FAST.Transfer)™ compatible. Reduces time and cost to change recipes. Ensures consistent recipes across all appliances/restaurants.
Optional Meridian PLUS Features
• Product and Action Alarm name library programming
• Adjustable audio alarm levels
• Diagnostic feature to assist with testing all inputs and outputs
• 3 pre-programmed fryer types (Universal
Appliance Control)
• Energy-saving “set back” mode
• 3 action alarms per key
• 10 cooking stages instead of one
• Twice the hold times
• Filter lockout oil management
• SCK Link® software giving you the most advanced communications capability available for ACCP reporting and automated on-line kitchen management
